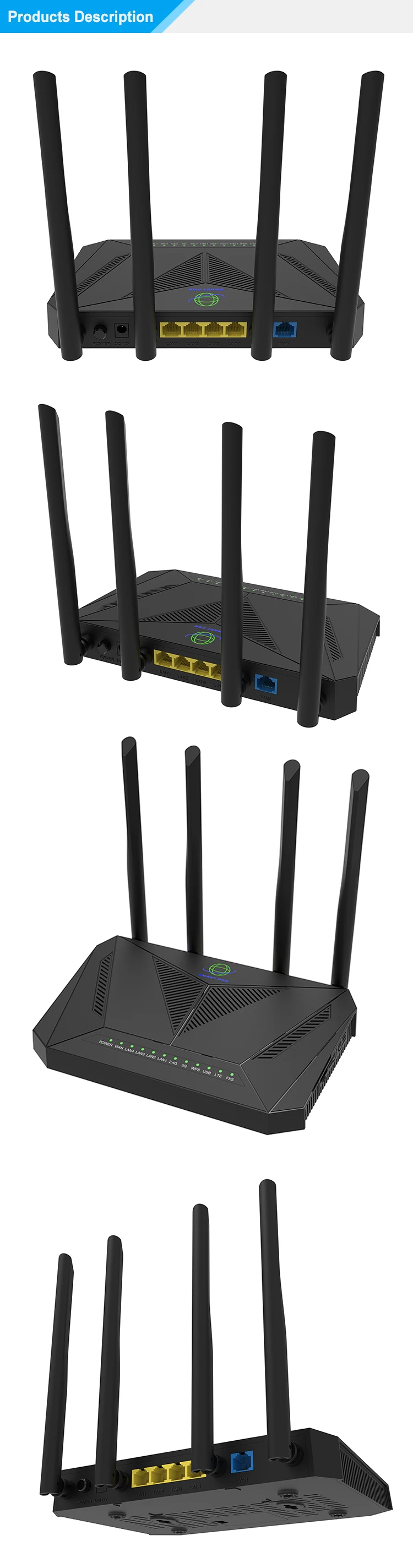

CAT 4 LTE Wifi Router

Product name:CAT 4 LTE Wifi Router

Wi-Fi Supported Frequency:2.4G

Wired Transfer Rate:10/100Mbps

2.4G Wi-Fi Transmission Rate:300 Mbps

LAN Ports:4

WAN Ports:1

WIFI:2T2R 2.4GHz Wi-Fi 300Mbps

Card Slot:1 SIM card slot

Power Supply:Output DC 12/1A

Flash:8MB

Memory:128MB

Wifi Antenna:2.4Ghz Wifi Antenna

CPU frequency:1GHz

Warranty:1 Year


Service Hotline:

+86 18312481880

INQUIRY
Description
Specifications

Product Specification
Hardware Parameters
Chipset
ASR for LTE; RLT8197FH-VG5-CG+Marvell 1802S
CPU frequency
1GHz
Memory
128MB 16-bit DDR2 SDRAM
Flash
8MB
Wi-Fi
2T2R 2.4GHz Wi-Fi 300Mbps
Device Interfaces
CAT 4 LTE interface
3FE port
1x 10/100M WAN port
1xSIM card slot
Voice interface
Optional
Button
Power button, Reset button, WPS button
Antenna
2 x 5dBi external LTE Antennas
2 x 5dBi external Wireless Antennas
LTE Support Bands
EC200T-EU
WCDMA: B1/8
FDD LTE: B1/3/7/8/20/28,TDD 38,40,41
Notes:
Other bands which not list in this file, user can confirm with us
Wi-Fi Features
Wi-Fi Standard
Compliant with IEEE 802.11b/g/n, IEEE802.3/3u/3az/3x, 2.4~2.4835GHz
Korea、Japan、ETSI、FCC channels can be selected
Modulation schemes
OFDM = BPSK,QPSK, 16-QAM, 64-QAM
DSSS = DBPSK, DQPSK, CCK
Transfer Rate
HT20: up to 144 Mbps
HT40: up to 300 Mbps
Software Features
General
RFC0768 UDP
RFC0791 IP
RFC0792 ICMP
RFC0793 TCP
RFC0826 Ethernet ARP
RFC0894 IP over Ethernet
RFC0922 Broadcasting Internet Datagrams
RFC0950 Internet Standard Subnetting
IEEE802.3 Ethertype
IEEE802.1p
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
RFC2516 PPP Over Ethernet (PPPoE)
RFC1662 PPP in HDLC-like Framing
RFC1332 PPP Internet Protocol Control Protocol
RFC1042 A standard for the Transmission of IP Datagrams over IEEE 802 Networks
IPoE (a.k.a IP over Ethernet over AAL5)
DHCP server、client
NAT,NAPT and ALG
DMZ and Port forwarding(Virtual server)
PPTP、L2TP VPN
IGMP proxy and MLD for IPTV
Logs and statistics
TR-069 remote mangagment
Flexible and secure SPI Firewall, Denial of Service (DoS) protection
Port filtering 、IP filtering and MAC filtering
URL filter
QOS Flow Control
DDNS
IPV6
Static route
SNTP Date/time update from Internet Time Server
ETH WAN link-backup via 3G/4G module
WEB GUI
Embedded AP with 4 SSIDs
Wireless WDS
Wireless client mode
Separate authentication for each SSID
Wireless schedule
Environment Requirement
Operating Temperature
0°C~40°C
Storage Temperature
-20°C ~ 90°C
Operating Humidity
5%~95% (typical)
Power Supply
Output DC 12V/1A
Dimension
210mm*130mm*30mm
Gross Weight
0.48KG
